Sirio GL-27 - No Groundplane CB Radio Antenna with Cable & Mount
Sirio GL-27 - No Groundplane CB Radio Antenna with Cable & MountSirio GL-27 - No Groundplane CB Radio Antenna with Cable & MountSirio GL-27 - No Groundplane CB Radio Antenna with Cable & Mount


Sirio GL-27 - No Groundplane CB Radio Antenna with Cable & Mount

Ref:  12GL27
Brand:  Sirio


Price:  £44.90




Share

Availability



Sirio GL-27 - No Groundplane CB Radio Antenna with Cable & Mount

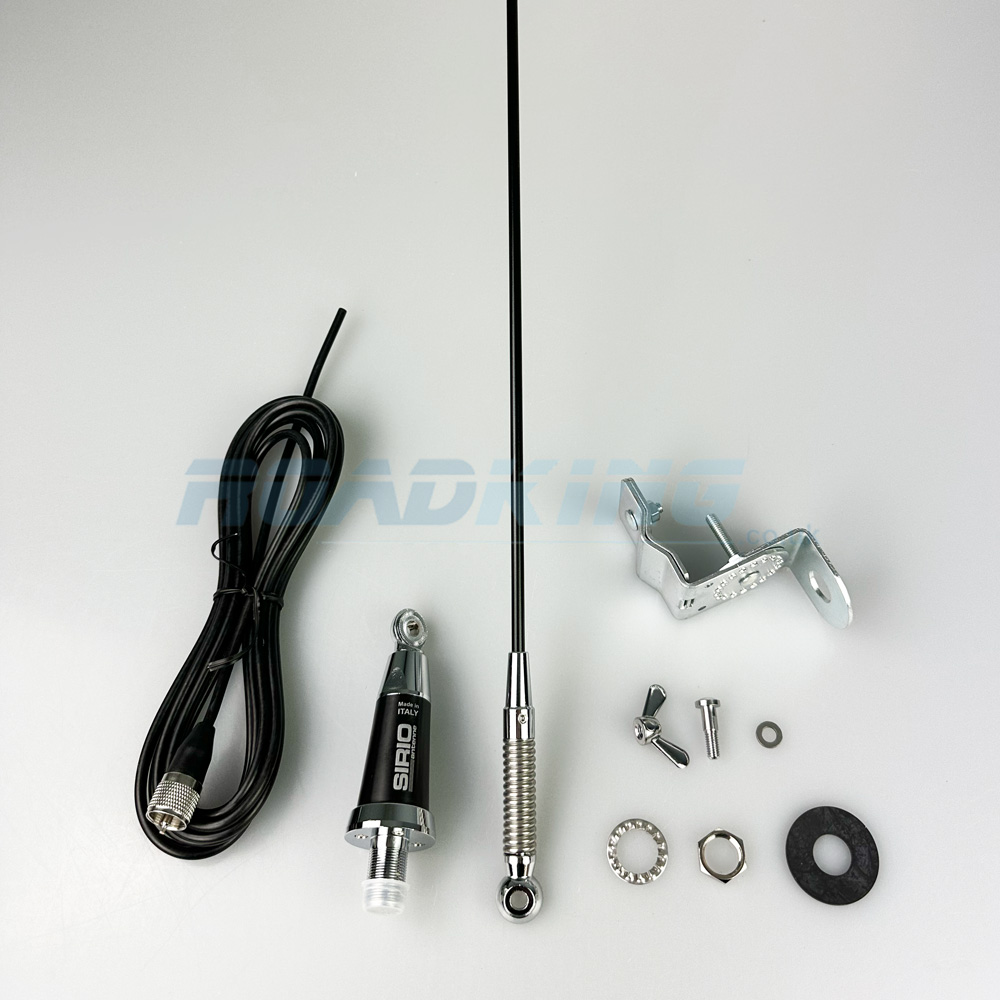

'No ground-plane' antenna kit, perfect for installation on vehicles lacking a ground plane, such as non-metal vehicles, fiberglass vehicles, caravans, boats, and more. The kit includes a mounting bracket and 4 meters of RG58 cable (PL259 plug not included).

The whip is constructed from black glass fiber, and its stainless steel spring ensures optimal robustness and flexibility. No tuning is necessary for installation. Typically, the antenna is installed on the provided mirror bracket.

Specifications

Electrical Data:

  • Type: Base loaded  Ground plane independent
  • Radiation: Omnidirectional
  • Polarization: Linear vertical
  • Frequency range: 26-28 MHz No tuning required
  • Systems: CB 27MHz, 10m-HAM
  • Bandwidth: ≥ 5.5MHz @ SWR ≤ 2
  • Max Power: 15 Watts (CW) continuous 50 Watts (CW) short time
  • Grounding protection: DC-Ground
  • Connector: UHF-female (SO-239)

Mechanical Data:

  • Materials: Chromed brass, Stainless steel, Fiberglass, Nylon
  • Height (approx): 1140 mm / 3.74 ft
  • Weight (approx): 430 gr / 0.95 lb
  • Mounting type: Mirror mount
