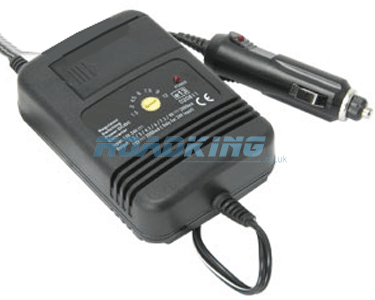

2A 12v/24v DC/DC Converter

Ref: 660.678

Price: £12.99(Inc. 20% VAT)

Earn 12 Loyalty Points

■ IC control output

■ Thermal, short circuit and overload protection

■ Rotary voltage selector switch

■ 6 assorted DC power plugs with polarity indication

2000mA Switch Mode DC/DC Converter that works from 12v or 24v. It has 6 outputs when used with a 12 volt input - 1.5v, 3v, 4.5v, 6v, 7.5v and 9v. When used with a 24 volt input it also has an extra output of 12v.

It is ideal for running small appliances such as, MP3 players, Video Games, Small TV's, DVD players, etc.

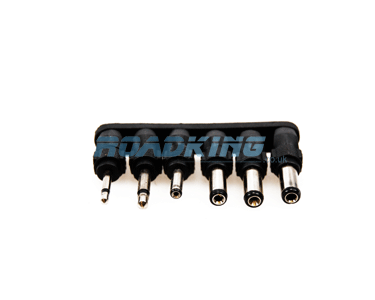

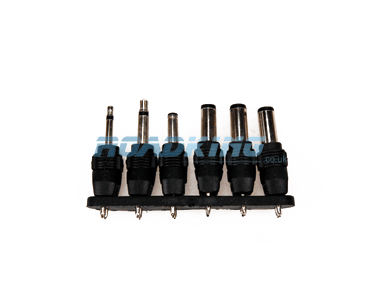

It plugs into a standard cigarette lighter/auxilliary socket in 12v and 24v vehicles and has 6 different adaptor plugs - 1.3mm, 2.1mm, 2.5mm, 1.5mm DC plugs and 2.5, 3.5 Jack plugs.

It also has reversible polarity and Thermal, Short Circuit and Overload protection.


		More Info

Specifications

Adaptor plugs: 1.3 x 3.5mm/2.1 x 5mm/2.5 x 5.5mm/1.5 x 5.5mm/2.5&3.5mm jacks
Input voltage: 12 - 24Vdc
Output Current: 2000mA max
Output voltage: 1.5/3/4.5/6/7.5/9Vdc (for 12V input) and 12Vdc (Only for 24Vdc input)
Dimensions: 23 x 55 x 145mm
Weight: 203g
